Velbon PH-66Q Revolver Head

Velbon PH-66Q Revolver Head
  • Velbon PH-66Q Revolver Head
  • Velbon PH-66Q Revolver Head
  • Velbon PH-66Q Revolver Head
  • Code: VEPH66Q
    In Stock - Supplier Despatch

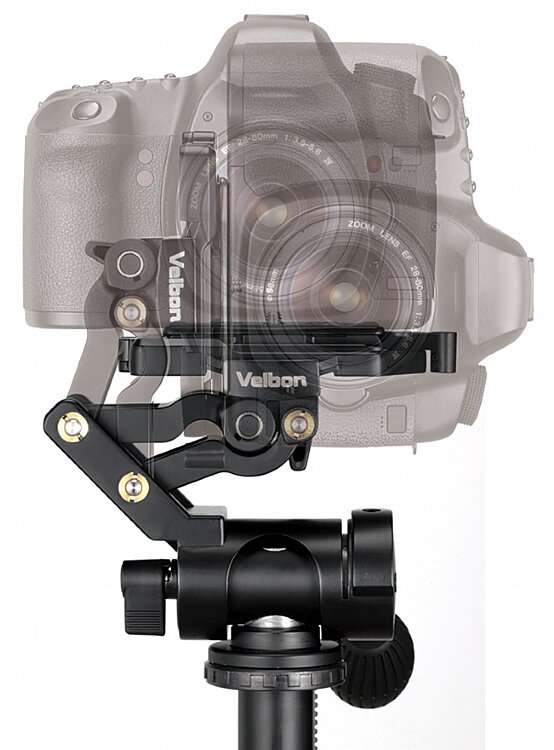

    The PH-66Q Revolver is a unique pan and tilt head incorporating a rotating mechanism to enable a camera to be quickly turned 90° from horizontal to vertical - ideal when you need to rapidly reframe shots while using a tripod. The head incorporates two bubble levels and the quick base release is mounted on a clever curved track which allows the camera to be levelled without adjusting the tripod legs. Fore-and-aft levelling is done with the pan handle, and the revolving base has a separate lock. The parallelogram mechanism can be locked at any angle between 0° and 90°. The QB-635L quick release plate has a slot to enable it to be centred on the camera base, anti-twist posts (optional) and a 1/4" screw.

    More Information

    • Lightweight magnesium alloy construction.

    • Two built-in bubble levels.

    • Supplied with 1/4" and 3/8" base socket inserts.


    • Type:  Pan and tilt with rotator
    • Quick release:  Yes
    • Revolving base:  360° with lock
    • Friction control:  No
    • Forward tilt:  90°
    • Side tilt:  90°
    • Height:  12.5cm
    • Weight:  650g
    • Max load:  3kg
    • Base connection:  1/4" or 3/8"
    • Base diameter:  50mm
    • Spirit level:  Yes
    • Q/R plate :  QB-635L
